2.0mm 3.0mm Fiber Optic Patch Cord OM2 SC LC Duplex Multimode 50/125 LSZH PVC

Model Number : Fiber Optic Patch Cords

Certification : CE Rohs SGS ISO

Place of Origin : China

MOQ : MOQ : 100PCS

Price : Price : Negotiable

Payment Terms : Payment Terms:T/T, L/C,paypal,Western Union

Supply Ability : Supply Ability :150000pcs/month

Delivery Time : Delivery Time :3 to 5 days for sample orders, 7 to 15days for bulk order

Packaging Details : Packaging Details : 1pc pp bag

Name : Fiber Optic Patch Cords

Fiber type : OM2 duplex

Jacket material : PVC, LSZH

Length : 1meter to 300meters

Brand : or OEM

Cable diameter : 0.9MM/2.0MM/3.0MM

IL : <0.3db

RL : APC >60DB,UPC >50DB

Connector : FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so on

Contact Now

Fiber Optic Patch Cords OM2 SC LC Duplex Multimode 50/125 2.0mm/3.0mm LSZH PVC

Description:

Fiber optic patch cords
are used to jump from the device to the fiber optic cabling link. There is a thick protective layer,generally used in the optical terminal and the terminal box between the connection, used in optical fiber communication
systems,fiber access network, optical fiber data transmission and LAN and other areas.

Specification:

Name	LC SC patch cord
cable diameter	0.9MM/2.0MM/3.0MM
Type	OM2 Multimode Duplex
IL	<0.3db
Fiber Count	1/2/4 Core are available
RL	apc >50db,upc >45db

Features:

1) Good durability
2) Good exchangeability
3) High temperature stability
4) Low insertion loss and back reflection loss
5) uperior Quality Standard PC/UPC/APC Polishing

2.0mm 3.0mm Fiber Optic Patch Cord OM2 SC LC Duplex Multimode 50/125 LSZH PVC

Product Tags:

3.0mm Fiber Optic Patch Cord

OM2 Duplex Fiber Optic Patch Cord

LSZH SC LC Duplex patch cord

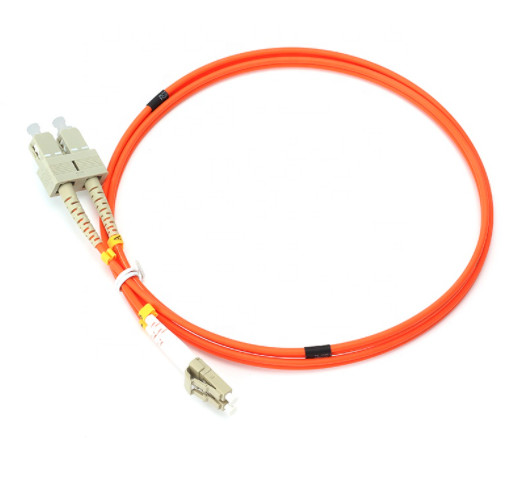

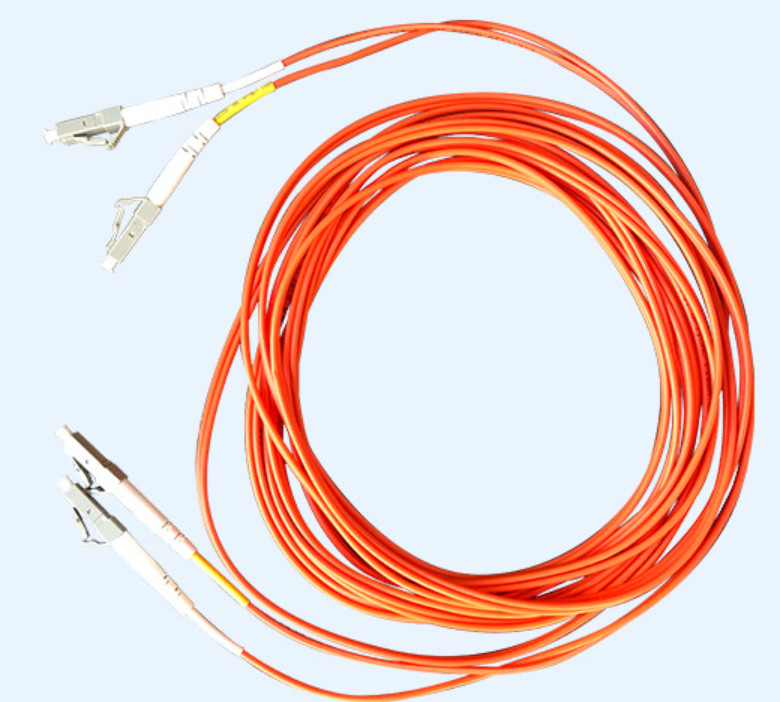

2.0mm 3.0mm Fiber Optic Patch Cord OM2 SC LC Duplex Multimode 50/125 LSZH PVC Images
